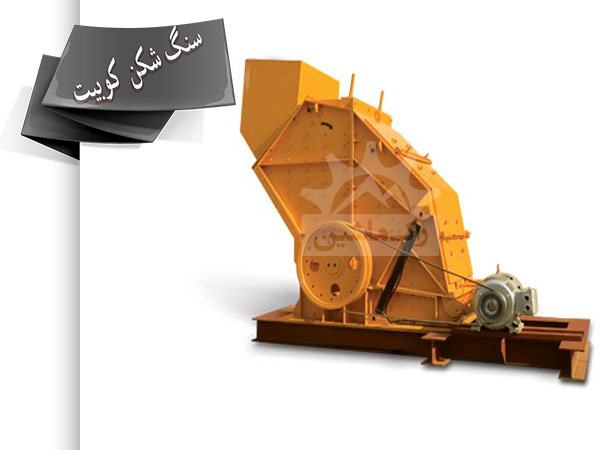

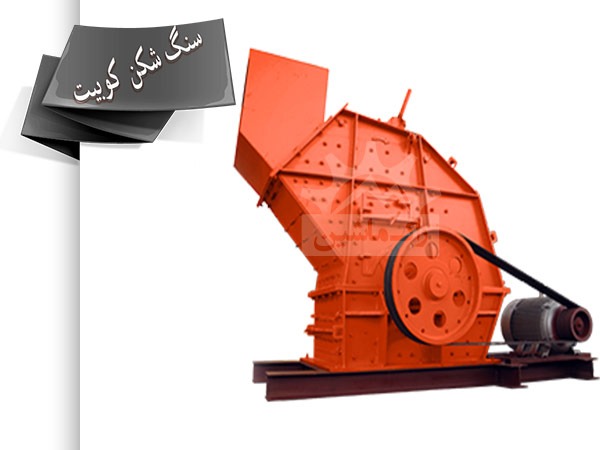

Horizontal shaft impactors are secondary crushers which utilize rotor impact hammers and impact anvils to achieve high production tonnages and improved aggregate particle shape. The rugged durability and easy maintenance of horizontal shaft impactors ensure less downtime and reduced wear costs for the operators.
The crusher housing consists of high quality stress relieved electro-cast steel and is equipped with service doors. The entire housing is equipped with easily replaceable highly wear-resistant lining.
Wear life is greatly increased by using 6 reversible hammers which can be adjusted 3 additional times. Hammers are attached to the rotor by specially designed steel retaining wedges, facilitating easy replacement.
Impact Crusher are available in HS14, HS10 and HS7 types with an embedded tuning screw that adjusts the output between 0 to 6 mm. This type of Impact Crusher can also be used as sand maker at the beginning of crusher lines.
